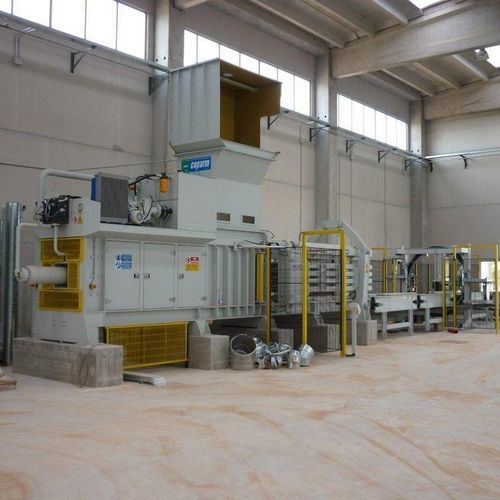

Horizontal baling press PC100

front-loadingfor cardboardfor paper

This model is the ideal machine for small and medium recovery. The bale size of 100 x 110 cm and features push productivity and enable you to work materials such as paper, cardboard, plastic film, agricultural sheeting, chopped straw, container and waste similar. E ‘it equipped with a hopper suitable for the treatment of bulky waste. The end result in terms of efficiency and compaction is very attractive especially if compared to the cost, in fact, are obtained normally bales of cardboard from the weight of 1.200 kg / each. Technical features Bale size: 100 x 110 cm x Var. (Bxh) Production: 15 – 20 ton/h Production volume: 400 mc/h Power: 100Hp – 75 Kw Cycles: N° 4 / min Specific pressure: 11 Kg/cmq Binding: N° 5 horizontal wires Fastening wire Iron wire Hopper Size: 900 x 1500 mm Optionals Supports for coils 1000 kg / each Specific Binding system for waste Reinforced trolley for Waste Wirbulator in the hopper for newspapers and magazines Color other than the standard (RAL 6011) Soundproofing system Diagnostic press supervisor Installation of dust extraction hopper System for the automatic weighing of the bale Binding with plastic wire
