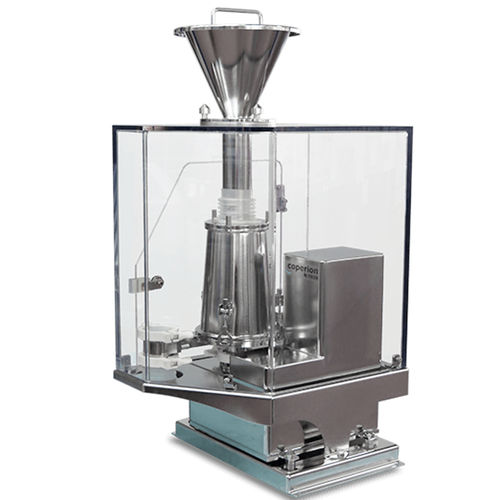

Volumetric feeder MT series

gravimetricverticalworm screw

Coperion K-Tron’s family of twin and single screw microfeeders has been specially designed to provide maximum accuracy at minimal feed rates, which makes these feeders ideal for use in the chemical and pharmaceutical processing industries. Unique design features ensure that high value ingredients are fed accurately at rates as low as 32 g/h with minimal residual material left in the feeder. The modular design means more flexibility for the process and easy access to all parts for cleaning and maintenance. The 12 mm and 16 mm twin and single screw feeding modules are completely interchangeable and can feed a wide range of free-flowing to difficult powders. •12 mm and 16 mm diameter twin and single screw feeding modules • Machined base with maximum screw opening and agitator for optimal screw filling • Bottom-driven vertical agitator provides accurate screw fill with minimal residual material • Quick coupling design for easy cleaning of product contact parts • All product contact parts in stainless steel • One stepper motor drives both screws and agitation • Completely oil and grease free drive system • Optional protective enclosure to reduce atmospheric/climatic influences Versions available for ATEX and NEC hazardous locations To accommodate various materials and feed rates, there are 4 screw designs available which can easily be exchanged. The design of the feeding trough, combined with the bottom driven vertical agitator, makes it possible to practically eliminate the amount of residual product.
