Compressed air filter

platewith cartridgeprocess

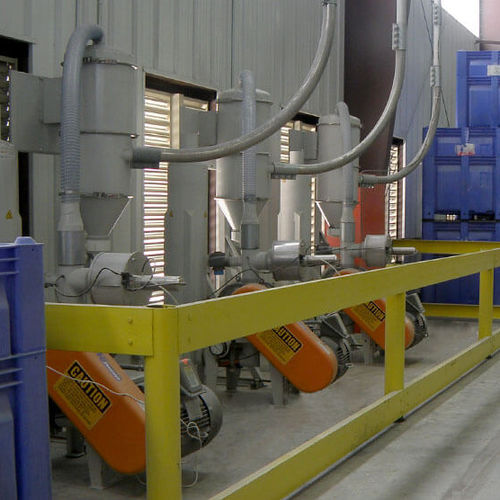

Static filters to ensure process system safety Coperion and Coperion K-Tron offer a variety of static filters which are used for protection of compressed air generators on the suction side and / or protection of downstream system components in a pneumatic conveying system. - Protection of product and plant equipment - Wide range, based on many years of experience and different applications in plant engineering - Filters can be optimized for various applications - Simple solutions for increased plant efficiency The Coperion K-Tron static in-line filter contains a manually-cleaned cartridge, and has a quick-access cover for easy filter inspection and maintenance. The material discharge gate also opens easily without tools. The secondary filter is available in 254 mm [10 in] and 380 mm [15 in] diameter housings, and is constructed of aluminum. Brackets are provided for wall mounting. The static in-line filter is also available as an assembly including in-line filter with mounting plate, 6 m [20 ft] of flexible hose, carbon steel support stand and hardware.
