DC motor control Stepnet ST3-055-04

stepperCANopenRS-232

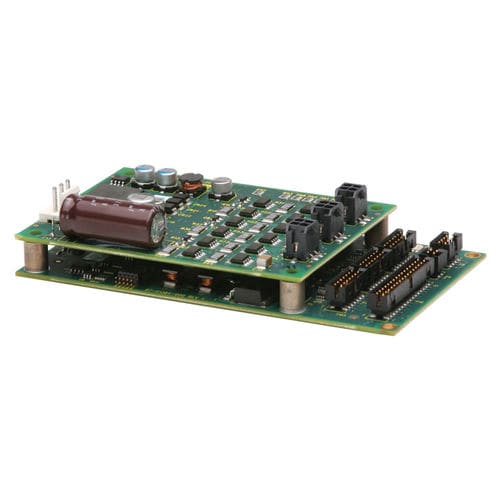

Stepnet ST3-055-04 puts three stepper motor drivers in a 13 in² package that combines CANopen networking with 100% digital control of stepper motors. Each axis is programmable with a unique CAN node address, which is stored in flash memory. Power output is compatible with most NEMA 17 and 23 size stepper motors. The small footprint is well suited for desktop instrumentation and enables motor drive, interface, and control circuits to be combined on a single PC board. Specifications CONTINUOUS CURRENT 2A PEAK CURRENT 4A SUPPLY VOLTAGE 20-55 VDC DIMENSIONS 121 x 70 x 27 mm DIGITAL INPUTS 15 DIGITAL OUTPUTS 6 FEEDBACK Incremental COMMAND INTERFACE Step/Direction, PWM ENVIRONMENT Commercial Control Modes • Position [Microstepping] • Indexer, Point-to-Point, PVT Command Interface • CANopen • ASCII and discrete I/O Communications • CANopen • RS-232 I/O • Digital: 15 inputs, 6 outputs • Analog: 3 inputs, ±10V Dimensions: mm [in] • 121 x 70 x 27 [4.75 x 2.75 x 1.08] description Set up is fast and simple using CME 2™ software operating under Windows® and communicating with Stepnet ST3- 055-04 via an RS-232 link. CAN address selection is programmed into driver flash memory. As a CANopen node Stepnet ST3-055-04 operates as a Motion Control Device under the DSP-402 protocol of the CANopen DS-301 V4.01 (EN 50325-4) application layer. DSP-402 modes supported include: Profile Position, Interpolated Position (PVT), and Homing. Profile Position Mode does a complete motion index on command with S-curve acceleration & deceleration, top speed, and distance programmable.
