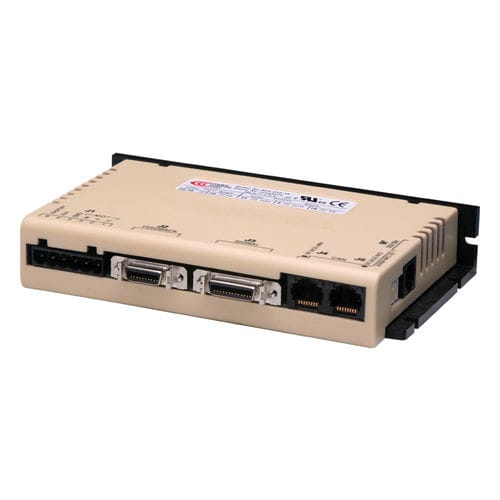

DC servo-drive Accelnet R20 series

digitalRS-232CANopen

Accelnet R20 is a ruggedized high-performance, DC-powered drive for position, velocity (using encoder, resolver, Halls, or BEMF), and torque control of brushless and brush motors. It operates as a distributed drive using the CANopen protocol, or as a stand-alone drive accepting analog or digital commands from an external motion controller. In stand-alone mode, current and velocity modes accept digital 50% PWM or PWM/polarity inputs as well as ±10V analog. In position mode, inputs can be incremental position commands from step-motor controllers, analog ±10V, or A/B quadrature commands from a master-encoder. Pulse to position ratio is programmable for electronic gearing. Specifications CONTINUOUS CURRENT 6A PEAK CURRENT 18A SUPPLY VOLTAGE 20-55 VDC DIMENSIONS 168 x 99 x 31 mm DIGITAL INPUTS 12 DIGITAL OUTPUTS 3 FEEDBACK Digital Halls, Incremental, Aux encoder/ encoder out COMMAND INTERFACE Step/Direction, Analog, PWM ENVIRONMENT Industrial, COTS Ruggedized Advanced Feature Set • BiSS-C Unidirectional & SSI absolute encoders • 32-bit floating point filters • Multiple advanced filters • Frequency analysis tools CONTROL MODES • Fast indexer, Point-to-Point, PVT • Camming, Gearing, Position, Velocity, Torque COMMAND INTERFACE • Stepper commands Single-ended or Differential selectable • CANopen • ASCII and discrete I/O • ±10V Position/Velocity/Torque command • PWM Position/Velocity/Torque command • Master encoder (Gearing/Camming) COMMUNICATIONS • CANopen • RS-232 • RS-422 (Optional) FEEDBACK • Digital quad A/B encoders • Biss-C Unidirectional absolute encoders • Analog Sin/Cos encoders • Secondary encoder / emulated encoder out • Digital Halls I/O - DIGITAL
