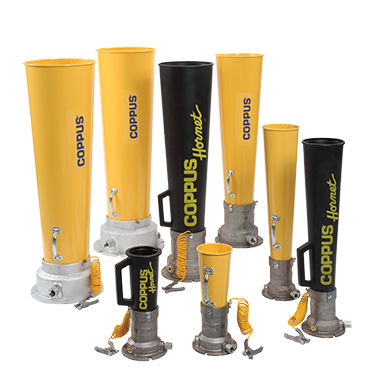

The unmatched performance of the COPPUS Jectair® HP is recognized throughout the industry. When compared with older-style air horns, the patented air mixing chamber of the Jectair® HP can produce up to a 40:1 air flow conversion and up to 26 percent savings on compressed air consumption.
Operating Principle: Compressed air or steam is admitted into the Jectair through a single inlet connection in the housing leading to the mixing chamber. The air or steam jetted from the nozzle creates a “Venturi” action that induces a large volume of surrounding air to enter the Jectair through the aerodynamic inlet bell. The air is then discharged at high velocity through the horn-shaped diffuser.
Note: Operating efficiency depends on compressed air volume and pressure (see charts)
FEATURES & ADVANTAGES: (JECTAIR)
• Standard Jectair in five sizes: 3SHP, 3HP, 6HP, 8, or 9
• Heavy-gauge steel diffusers; aluminum diffusers available on 3HP & 6HP model
• Compressed air or steam operated
• Air flows range from 1,370 to 8,900 cfm (2,328 to 15,121 m3/hr)
• Induction ratios up to 40:1
• Multiple expansion nozzles machined into housing
• High static pressure capabilities
• No moving parts; virtually maintenance free
• Static bonding cable with spring tension grip and replaceable contact tips.
• Easily attach duct to outlet diffuser end
• Inlet duct adapter available (optional)
• Tripod for stationary mounting available (optional)
