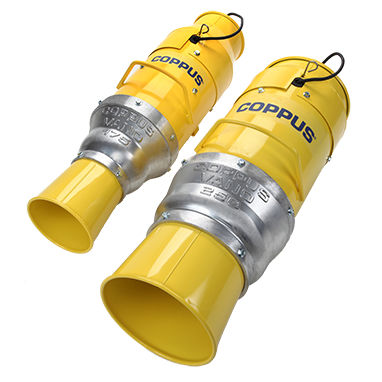

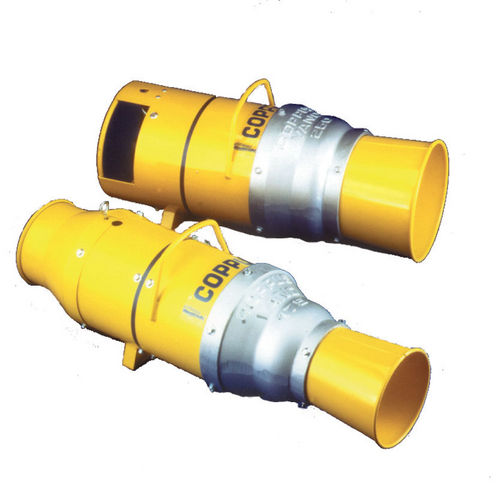

Duct fan COPPUS VANO® series

low-noisehorizontalportable

COPPUS Ventilators revolutionized air moving equipment more than 60 years ago with the introduction of the VANO. The VANO offers a fixed guide vane design that delivers high volumes of air while maintaining static pressure for exhausting fumes and delivering fresh air – making it the quintessential confined space ventilator. A rugged, durable, high-performance design makes the VANO ideal for ventilating tanks, process vessels, tank cars, manholes, and other confined spaces. VANO® FEATURES & ADVANTAGES: • Heavy-gauge steel and cast aluminum construction • Beaded-end for structural integrity • Corrosion resistant powder coating • Lift handle at or near equilibrium for easy lifting • Nickel plated steel guide vanes protected by cast aluminum housing for improved static pressure performance • Safety screens per OSHA; plated steel • Convertible inlet designed to exhaust fumes from bottom of tanks • 115V or 230V (60 Hz), and multiple 50 Hz voltage options • All models supplied with switches and 15 ft (4.57 m) power cord; plug 115V totally enclosed only • Auto thermal overload protection • Hazardous location (EP) motors rated NEC Class I, Division I, Group D & Class II, Division I, Groups E, F & G specifications • 92 dBA @ 5 ft (1.5 m) • Tripod available with any VANO. Elevates VANO to waist height for ergonomics and better access to elevated tank openings; allowing VANO to be positioned between 45 degrees up and down and pivoting 360 degrees. • Transport cart available for any VANO. Cart provides easy transportation and handling of VANO; eliminating need to lift or carry and can be operated while strapped to cart.
