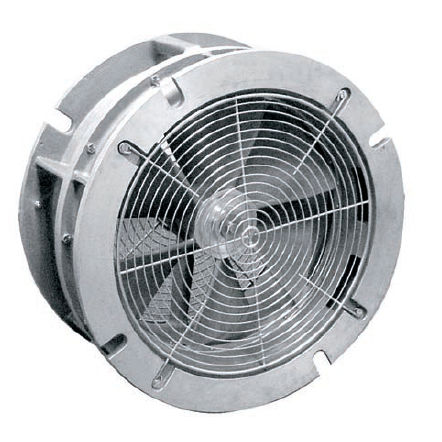

Axial fan CP-20 coolingextractiondrying
Add to favorites
Compare this product
Characteristics
- Configuration
- axial
- Function
- cooling, extraction, drying, ventilation, explosion-proof, anti-corrosion
- Material
- stainless steel, cast aluminum, aluminum
- Applications
- for chemical applications, for harsh environments, furnace, industrial, for pneumatic conveying, high-volume
- Ecological characteristics
- ecological, energy-saving, long-life
- Other characteristics
- high-flow, high-performance, direct-drive, waterproof, low-pressure, high-temperature, flange, wide temperature range, low-vibration, portable, single-inlet
- Air flow
19,029 m³/h
(672,002.793 ft³/h)- Noise level
Min.: 105 dB
Max.: 111 dB
Description
This powerful fan is designed for fast and thorough degassing, ventilating or cooling of large process vessels such as columns, towers, reactors, scrubbers, furnaces, and storage tanks.
FEATURES & ADVANTAGES:
• Delivers air flow up to 11,200 cfm (19,029 m3/hr)
• Functions as blower or exhauster
• Flanges mate with 20 inch (508 mm) API tank opening
• Cast aluminum housing and fan blade
• Stainless steel turbine buckets
• Separate stainless steel nozzles for high- or low-pressure operation
• Fan assembly shaft rotates on permanently sealed ball bearings
• Stationery expansion nozzles
• 105-108 dBA @ 5 ft (1.5 m)
ACCESSORIES:
• Beaded duct adapter
• Bonding Cable
• Swing-Out Bracket
• 20” Conductive Duct
Catalogs
COPPUS CATALOG
24 Pages
