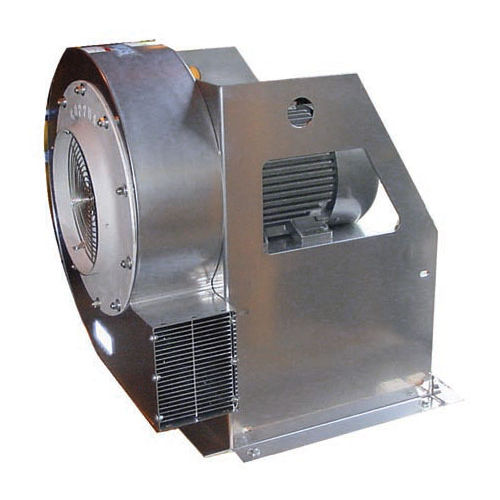

Air blower VENTAIR® TM series
centrifugalsingle-stagecentrifuge

air blower
air blower
air blower
air blower
Add to favorites
Compare this product


Characteristics

Type
air
Technology
centrifugal
Number of stages
single-stage
Applications
centrifuge, cooling, drying, extrication, recirculation, for the petrochemical industry, discharge, for ventilation, process, transport, for chemicals, heavy-duty, for fuel cells, furnace, for hot welding torch
Voltage / frequency
100-240 V
Other characteristics
oil-free, high-pressure, compact, aluminum, positive pressure, direct-drive, single-phase, explosion-proof, single-inlet
Flow

Max.: 18,179 m³/h
(641,985.33 ft³/h)

Min.: 2,887 m³/h
(101,953.44 ft³/h)

Sound level

84 dB, 88 dB, 94 dB, 100 dB, 104 dB

Weight

50 kg, 59 kg, 93 kg, 250 kg, 304 kg
(110.23 lb, 130.07 lb, 205.03 lb, 551.16 lb, 670.21 lb)

Length

483 mm, 559 mm, 651 mm, 762 mm, 870 mm
(19.02 in, 22.01 in, 25.63 in, 30 in, 34.25 in)

Depth

478 mm, 599 mm, 632 mm, 828 mm, 978 mm
(18.8 in, 23.6 in, 24.9 in, 32.6 in, 38.5 in)

Height

572 mm, 665 mm, 732 mm, 904 mm, 1,067 mm
(22.5 in, 26.2 in, 28.8 in, 35.6 in, 42 in)

Description

This is a rugged, high-volume, high-pressure centrifugal fan. Backwardly inclined fan blades yield stable air flow through small diameter or long runs of duct. The high static pressure capabilities make this an ideal air mover for supplying fresh air or source-capturing welding and other fumes for multiple remote locations with an optional multiple inlet adapters. FEATURES & ADVANTAGES: • Heavy-gauge steel housing and base protects fan and motor • Corrosion resistant silver powder coat suitable for marine environments • Safety screens per OSHA; plated steel • Lifting lugs • Available in 1-, 2-, 5-, 15-, and 30-HP motors producing up to 10,700 cfm (18,179 m3/hr) • One-piece, cast aluminum, spark-resistant, abrasion-resistant, dynamically balanced fan wheel • Backward curved airfoil-shaped blades provide non-overloading power characteristics allowing peak performance through long runs of duct • TE and EP Motors available in 115, 230, & 460 Volt • Hazardous location (EP) motors rated NEC Class I, Division I, Group D & Class II, Division I, Groups F & G specifications • 3,500 rpm motor directly connected to the fan wheel • Variable outlet orientation • 84 – 100 dBA @ 5 ft (1.5 m) OPTIONS: • Multiple inlet Adapter • Outlet Diffusers • Starters & Cord • Forklift Base • Vibration Isolators • Silencer Kit – 12 dBA reduction, mold resistant, flame resistant ACCESSORIES: • Duct – 8”, 10”, 12”, 14” & 16”; Heavy Duty, Conductive, & Polyvinyl • Duct Storage Canisters
