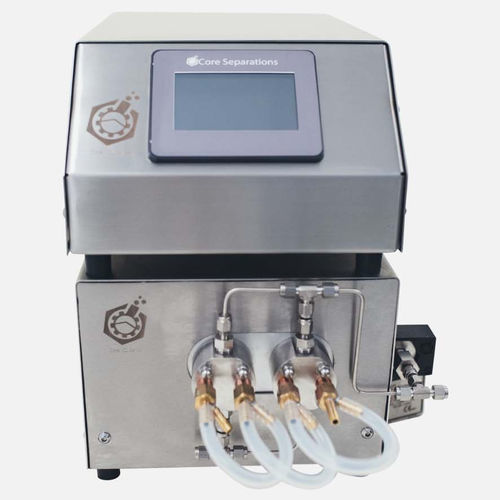

Piston pump P50

oilCO2electric

Whether looking to deliver liquids into a high pressure autoclave or generate supercritical CO2, the Core Separations P50 can deliver a maximum flow of 50g/min upto 689 bar. Ideal for reactors upto 500mL. Features 1. Ceramic Piston The ceramic piston design reduces friction, resulting in less seal wear and lower maintenance. Dual stainless-steel heads with a cam driven piston assembly eliminates pulsed flow. 2. Efficient Cooling With the heads machined with an innovative groove allowing the addition of cooling fluid, these pumps can easily be used to pump both solvents and CO2 3. Remote Diagnosis Even with our robust designs, unforeseen problems can occur. In-order to ensure the pumps downtime is reduced to a minimal we can diagnosis issues remotely and offer a solution to ensure the pump is back running in the shortest time possible. 4. Precision Motor Utilising either stepper or servo motors the CL pumps are capable of control, based on feedback from the pressure sensor or flow meter and can be regulated using a touch screen display, or via a PC through an ethernet connection. 5. AC Motor GearBox Combo Our Industrial series pumps use a tried and tested AC motor and gear box design that are highly energy efficient and have a proven long service life for all mechanical components. Combined with particularly low maintenance and operating costs, our pumps are well suited for the conditions required in manufacturing environments. 6. Dual Piston Dual cam driven pistons designed to reduce pulsation during operation. Sealed for life bearings removing the requirement for an oil pan reducing the required maintenance over the lifetime of the pump.
