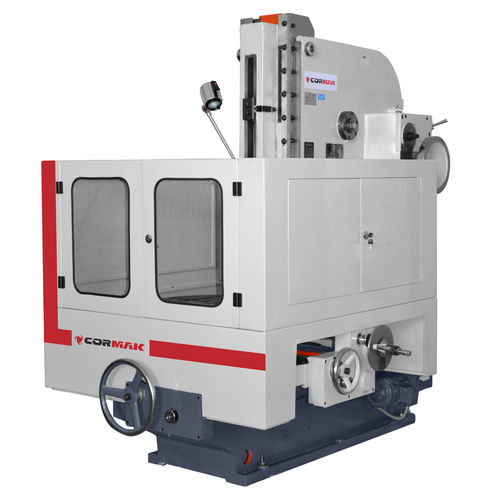

Automatic slotting machine 320

A machine for machining of various internal and external surfaces, in particular splineways. It secures a broad use in repair divisions and tool shops, at piece and small lot production. MAX. SLOTTING LENGTH 320 mm SLIDER TILT 0 - 8° WORK TABLE DIAMETER 620 mm VERTICAL SLIDER SETTING VALUE 305 mm TOOL POST DISTANCE FROM COLUMN 590 mm DISTANCE FROM TABLE SURFACE TO SLOTTING TOOL WAYS END 445 mm MAX. TABLE ANGLE OF ROTATION ROBOCZEGO 360° LONGITUDINAL AND CROSS FEED VALUES RANGE 0.054 – 1.24 mm ROTARY FEED VALUES RANGE 0.035 – 0.805° MAXIMAL SLOTTING FORCE 8 kN MAXIMAL WORK TABLE LOAD 480 kg T-SLOT WIDTH 18 mm MAIN MOTOR POWER 3 kW MAIN MOTOR ROTATIONAL SPEED 1420 rpm RAPID FEED MOTOR POWER 0.7 kW RAPID FEED MOTOR ROTATIONAL SPEED 1390 rpm WEIGHT 2390 kg
