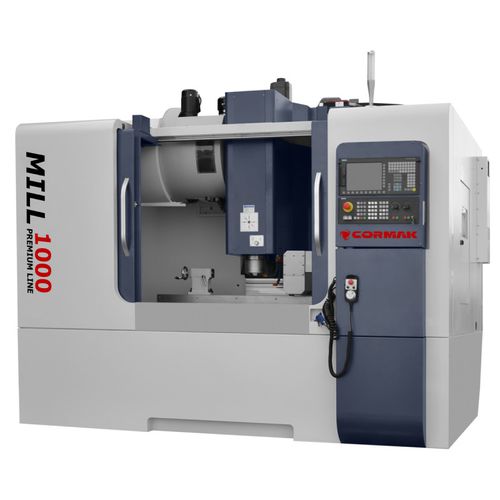

3-axis machining center MILL1000

verticalBT 4024 tools

Machines from the PREMIUM LINE series were created in order to fulfill the requirements of the most demanding users. The high quality and reliability of components ensure higher precision and efficiency of machining with the usage of multiple tools. Machining centres are built with parts from the best Taiwanese, German, Japanese and Chinese manufacturers, such as HIWIN, POSA, SIEMENS, FANUC, OMRON, PRAGATTI, SHNAIDER, CHANDOX, FAG, BOSCH REXROTH. Table dimensions 1100×600 mm Number of T-slots 5 Width of T-slots 18 mm Distance of T-slots 100 mm Table load capacity 600 kg Spindle from table surface distance 150–700 mm Spindle taper BT40 Feed speed 2.5–10000 mm/min Quick feed speed 24/24/18 m/min Number of tools 24 Maximum diameter of a tool Ø 150×350 mm Maximum length of a tool 250 mm Maximum weight of a tool 8 kg Minimum tool change time 1.4 seconds Positioning accuracy ± 0.005 mm
