Data cable harness HR0018G6C06U820100F-PK

multi-mode fiber opticduplexlow-profile

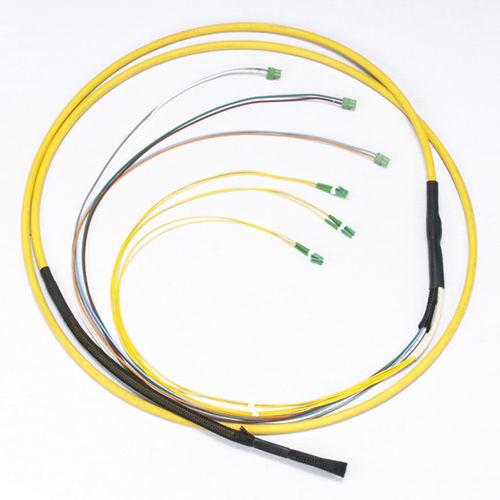

Composite ONE™ Pigtail, LC APC to pigtail with 36-in legs 6 F, 6 Cu Conductor, 14AWG, pulling grip one end, SMF-28® Ultra fiber (OS2), 100 ft Contains both power carrying copper strands and data transmitting fiber in one jacket Reduces labor and time to install Low-profile, heat-shrink furcations with integrated pulling loop Design enables easy cable pulling in tight spaces Durable pulling gripProtects the connectors while pulling the cable Angled polish duplex connectorsLow back reflectance protects active electronic equipment RoHS - Free of hazardous substances according to RoHS 2011/65/EU Fiber Count - 6 Conductor count - 6 Conductor - 14 AWG Outer Jacket Material - Flame-retardant Polarity - TIA-568 Type-A Tensile Strength - 660 N (148.37 lbf) Min. Bend Radius Installation - 168 mm (6.61 in) Min. Bend Radius Operation - 112 mm (4.41 in) Reflectance, Typical - ≤ -65 dB Polish - APC Insertion Loss, Typical - 0.15 dB Insertion Loss, Max. - 0.25 dB Keyed (security) - No Boot Color - Blue Connector Type - LC APC Ferrule Material - Ceramic Housing Color - Blue Housing Material - Composite Boot Type - Individual Leg Diameter - 2 mm (0.08 in) Plug Type - Heat-shrink sleeve Staggered furcation - No Pulling grip - Yes Tensile Strength - 660 N (148.37 lbf) Outer Diameter - 11.2 mm (0.44 in) Contains both power carrying copper strands and data transmitting fiber in one jacket Reduces labor and time to install Low-profile, heat-shrink furcations with integrated pulling loop Design enables easy cable pulling in tight spaces Durable pulling gripProtects the connectors while pulling the cable
