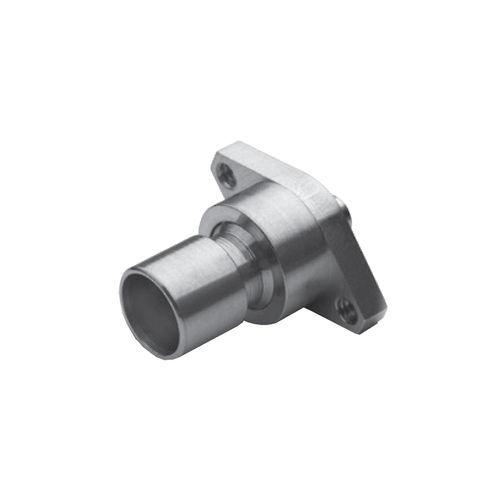

Data connector H001-D32-01

maleDCfrequency

GMS Male/Plug Cable Connector Plug Float Mount to 0.086 S/R Cable Finish, Contacts - Gold plated per MIL-G-45204, Type I, Grade C, Class 1, Over Nickel Plate per SAE AMS-QQ-N-290 Materials, Outer Contacts - Beryllium Copper per ASTM B196 and or/ASTM B197 Materials, Springs - 17-7 Stainless Steel per ASTM A313-95A Finish, Bodies - Passivate per MIL-F-14072 E300 Materials, Center Contacts - Beryllium Copper per ASTM B196 and or/ASTM B197 Impedance - 50 Ω Materials, Insulators - PTFE Fluorocarbon per ASTM D1710 Frequency Range - DC to 23 GHz typ. Materials, Bodies - CRES 303 per ASTM A484 and ASTM A582 and/or ASTM A555 and ASTM A581 Product Type - Connectors Diameter A - 6.858 mm (0.27 in) Diameter B - 3.048 mm (0.12 in) Tolerated Misalignment Axial - 0.06 Tolerated Misalignment Radial - ± 0.020 Mate / Demate Cycles - 5000 VSWR - 1.15:1 to 8 GHz1.25:1 to 23 GHz Contact Resistance - Inner Conductor - 2.5 mΩ Contact Resistance - Outer Conductor - 2 mΩ Meets all MIL-STD Performance specifications Designed to accommodate both radial misalignment of .020 and axial misalignment of .060 without compromising electrical performance Frequency from DC to 23 GHz
