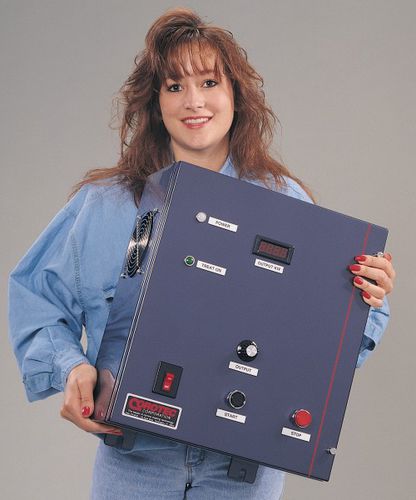

AC/AC power supply LCT series

tabletopcompacthigh-frequency

Available in sizes from 1.0 kW to 10.0 kW, our new compact power supplies are so small that our new 10 kW unit is packaged in a cabinet that formerly housed our 1 kW power supply that’s ten times the power in the same size cabinet! Yet, they include many of the same features and deliver the same high-caliber performance as our larger HFT Series units. High Frequency + High Efficiency = High Performance All of our power supplies are capable of operation at frequencies as high as 40 kHz, offering important advantages over low-frequency systems: Compact Size: To achieve a given output power, our high-frequency systems require less output kVA than low-frequency systems. This translates to higher efficiency in the output high voltage transformer and smaller overall size for the entire system. Longer Dielectric Life: Higher frequency reduces peak voltages at the electrode, resulting in less stress on the dielectric material bonded to the treater roll (or to the electrode in bare-roll systems). Higher Quality Product: High frequency generates lower voltages across the treated material, reducing static buildup and inconsistent treatment due to material wrinkling or lifting from the roll. Metallized webs are less prone to pinholing and metal “blow-off” when treated with our low-voltage, high-frequency systems.
