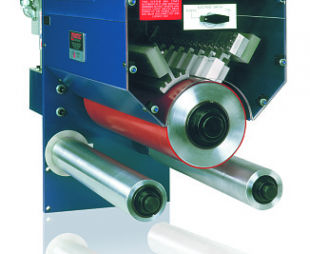

Corona effect surface treatment machine Uni-Dyne®

for the printing industry

Our NEW Uni-Dyne® narrow-web system offers unprecedented ease of installation and use. Never before has it been so easy to install a corona treating system on a narrow-web press, since the Uni-Dyne system comes with virtually everything already done for you – all you do is bolt it in place and add power! The Uni-Dyne system can also be supplied with our Power Density Control system already installed for you, right in the power supply module. With the innovative Uni-Dyne system, you get all the most desired features and options in a single, compact, easy-to-install package. Our compact narrow-web treaters offer the operational and performance features of large systems, including stepless output power control, output metering, operating status lights, and interlock terminals. Also, the high-voltage transformer on some models does not require tap changes for load matching and can be located directly on the treating station end plate, eliminating the need for special high-voltage wire runs. Compact cantilever design for easy installation. 100% solid-state, 30 kHz power supply. Treatment widths of 1″ to 30″ or more. Line speed capability in excess of 1,200 feet per minute. Electrodes for both conductive and nonconductive materials. One- or two-side treatment in one pass. Simple 120-volt operation from any standard outlet on systems 1 kW and below. Application Assistance
