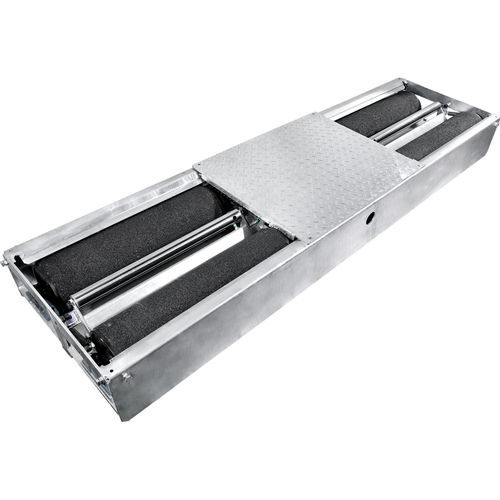

Car brake tester BTC22

roller

Brake tester with analog display and electromagnetic motor brake | Meets all current guidelines (RiLi 10/2011 HU § 29 StVZO) with ASA livestream Scope of Delivery: Hot-dip galvanized roller set Low-wear corundum rollers 700mm Adjustment screws for height adjustment Wear-free, electronic measuring system All car brake testers are prepared for upgrading the 4-point-weighing system Car brake tester fits in all common pits All car brake testers can be extended to test lane Compact control box Speed sensors Manual / automatic mode, delayed automatic switch-on Start-up monitoring, slip shut-off and shutdown after driving out from the brake teser Optimized test procedure also suitable for electronic parking brakes Electromagnetic engine brake as drive out support Test speed 5.1km/h Four-wheel drive kit, ideal for 4x4 vehicles Lockable main switch Large easy-to-read analog display with 2x255mm (300 °) clocks Analog display with 16-digit LED display ASA-Livestream Wall mounting for control box Swivel arm for analog display Fast delivery and installation Technical data Test width min. - 800 mm Coefficient of friction dry/wet - > 0.7 / > 0.6 Fuse protection - 3 x 25 A slow-blow Test width max. - 2200 mm Power supply - 3 x 400 V, N, PE 50 Hz Test speed - 5,1 km/h Weight - 430 kg Max. drive-over load - 4000 kg Roller elevation - 25 mm Rollerset Height - 240 mm Rollerset Width - 2320 mm Roller length - 700 mm Roller diameter - 205 mm Rollerset Length - 660 mm Display cabinet Measuring range - 0 - 8 kN Brake tester Roller set - Hot galvanized
