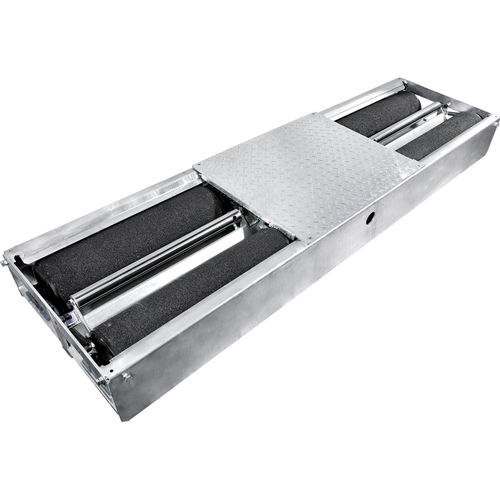

Car brake tester BTC22

roller

Brake tester with electromagnetic motor brake | Meets all current guidelines (RiLi 10/2011 HU § 29 StVZO) with ASA livestream Scope of Delivery: Hot-dip galvanized roller set Low-wear corundum rollers 700mm Adjustment screws for height adjustment Wear-free, electronic measuring system All car brake testers are prepared for upgrading the 4-point-weighing system Car brake tester fits in all common pits All car brake testers can be extended to test lane Compact control box Speed sensors Manual / automatic mode, delayed automatic switch-on Start-up monitoring, slip shut-off and shutdown after driving out from the brake teser Optimized test procedure also suitable for electronic parking brakes Electromagnetic engine brake as drive out support Powerful 3kW motors Test speed 5.1km/h Four-wheel drive kit, ideal for 4x4 vehicles Lockable main switch ASA-Livestream Wall mounting for control box Fast delivery and installation Needed Accessories: PC connection with PC visualization (standard car software) echnical data Test width min. - 800 mm Coefficient of friction dry/wet - > 0.7 / > 0.6 Fuse protection - 3 x 25 A slow-blow Test width max. - 2200 mm Power supply - 3 x 400 V, N, PE 50 Hz Test speed - 5,1 km/h Weight - 430 kg Roller elevation - 25 mm Rollerset Height - 240 mm Rollerset Width - 2320 mm Roller length - 700 mm Roller diameter - 205 mm Rollerset Length - 660 mm Display cabinet Measuring range - 0 - 8 kN Brake tester Roller set - Hot galvanized Brake tester Test weight per axle (at 50% braking ratio) - 2700 kg
