Car test lane 20.02.00.3021
roller

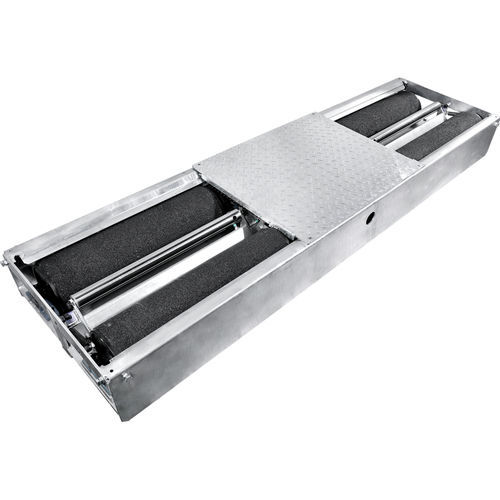

Car test lane - 20.02.00.3021 - Cosber GmbH - roller
Car test lane - 20.02.00.3021 - Cosber GmbH - roller
Car test lane - 20.02.00.3021 - Cosber GmbH - roller - image - 2
Car test lane - 20.02.00.3021 - Cosber GmbH - roller - image - 3
Car test lane - 20.02.00.3021 - Cosber GmbH - roller - image - 4
Car test lane - 20.02.00.3021 - Cosber GmbH - roller - image - 5
Car test lane - 20.02.00.3021 - Cosber GmbH - roller - image - 6
Add to favorites
Compare this product


Characteristics

Applications
for car
Other characteristics
roller
Power per motor

4 kW
(5.44 hp)

Braking force

10 kN

Maximum load

4,000 kg
(8,818.49 lb)

Description

Chassis tester ESC20 PC connection with PC visualization (Testlane software) Technical data Test width min. - 800 mm Coefficient of friction dry/wet - > 0.7 / > 0.6 Fuse protection - 3 x 32 A slow-blow Test width max. - 2200 mm Power supply - 3 x 400 V, N, PE 50 Hz Test speed - 5,1 km/h Weight - 430 kg Roller elevation - 25 mm Rollerset Height - 240 mm Rollerset Width - 2320 mm Roller length - 700 mm Roller diameter - 205 mm Rollerset Length - 660 mm Display cabinet Measuring range - 0 - 8 kN Brake tester Roller set - Hot galvanized
