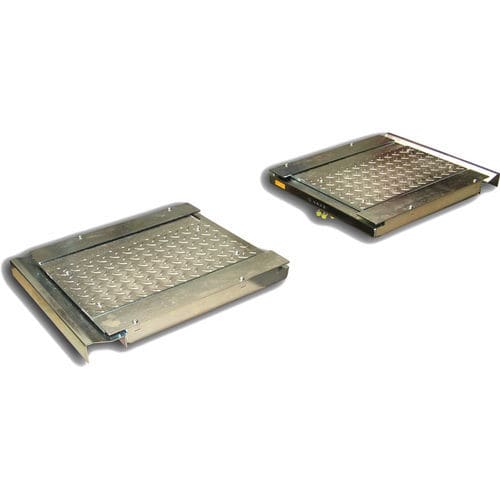

Vehicle detector C-PD32L

for the automotive industry

Axle and joint play tester for cars and light commercial vehicles. Hydraulic-operated play tester for testing the vehicle wheel suspension and steering elements up to 2.6 t axle load. With 6 test movements, this play detector is suitable for chassis diagnostics and periodic vehicle inspection. The low height allows installation in a pit (C-PD32P) or on a vehicle lift (C-PD32L). Permission from the platform manufacturer is required for installation on a lifting platform. Testing of vehicles in category M1, N1 Test movements: longitudinal, transverse and parallel Testing by one person with the brake pedal lock Covering of the test plate edges provides additional user safety When switched off, the test plates are automatically fixed Cable remote control with inspection lamp Meets the requirements of the Austrian Testing Center Ordinance 3/4/5.PBStV-Nov./Anl. 2a SCOPE OF DELIVERY: Left and right test unit Hydraulic unit with valve block and control Cable remote control with included inspection lamp Brake pedal lock ACCESSORIES Roll-off protection Connecting rod for lifting platform (must be installed) Hydraulic connecting hoses -C-PD32P: 4x1,800mm & 4x4,000mm (recommended) -C-PD32P: 4x2,400mm & 4x4,700mm (recommended) SPECIAL ACCESSORIES Up and down ramp set (4 pieces) Radio remote control conversion Radio connection box for use with underfloor installation of the hydraulic unit
