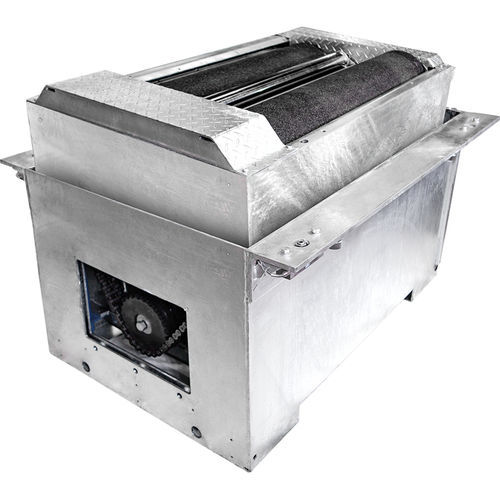

Truck brake tester BTT62

roller

Brake Tester with Analogue Display, Hydraulic-lifting device and Electromagnetic Motor Brake | Meets all current guidelines (RiLi 10/2011 HU § 29 StVZO) with ASA livestream Scope of Delivery: Hot dip galvanized left and right roller set Low-wear corundum rollers 1000mm Adjustment screws for height adjustment Wear-free, electronic measuring system Speed sensors All truck brake testers are prepared for upgrading the 8-point-weighing system Truck brake tester fits in all common pits All brake tester can be extended to test lane Compact control box Manual / automatic mode, delayed automatic switch-on Start-up monitoring, slip shut-off and shutdown after drive out Optimized test procedure also suitable for electronic parking brakes Electromagnetic brake as drive out support Two test speeds (2,5 and 5km/h) Four-wheel drive kit, ideal for 4x4 vehicles Lockable main switch Large easy-to-read analog display with 2x255 mm (300°) clocks Analog display with 16-digit LED display ASA-Livestream Swivel arm for analog display Hydraulic lifting device (200mm lifting height) Optional Accessories: Assembly frame for track width 2700mm Assembly frame for track width 2800mm Assembly frame for track width 2900mm Assembly frame for pit Pit cover plate for 2700mm assembly frame Pit cover plate for 2800mm assembly frame Pit cover plate for 2900mm assembly frame Pit safety GSQ1 (2,5m) Pit safety GSQ2 (1,5m in front and 2,5m after roller set center) Pit safety GSQ3 (2,5m in front and 2,5m after roller set center) Air pressure sensrs-Set (PM-PX-PX2) PC connection with PC visualization (truck standard software) PC connection with PC visualization (including car software)
