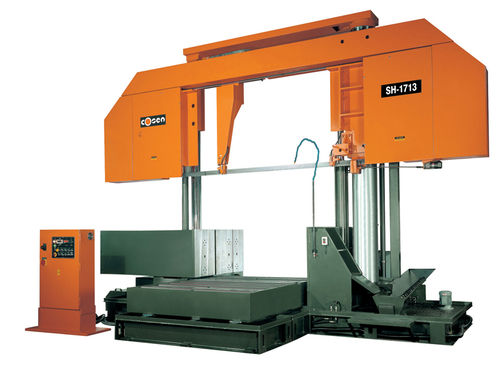

Band saw SH-1713

horizontalsemi-automaticdouble-column

Machine Structure - The heavy duty, rigid saw frame is supported by two large bore hydraulic cylinders, providing unsurpassed rigidity, and the smoothest cutting attainable throughout the cutting cycle. - Dual Column design with rigid, precision ground columns ensures smooth saw frame movement and the consistently stable cutting force required throughout the cutting cycle. Blade Drive & Lubrication System - Planetary gear reducer drive is used to drive the blade and provides an increased level of torque efficiency than a worm gear reducer. With Cosen’s specially designed planetary gearbox equipped to your machine, mechanical efficiency can be raised to above 90%, largely increasing cutting efficiency and saving your electrics bills. While due to low efficiency, the traditional worm gearbox may fail to drag along the blade and cause jammed blade, Cosen’s planetary gearbox would not have this problem at all. Specially designed to sustain high lateral pressure, this drive system facilitates even more perfect cutting performance. - Inverter Blade Speed Control is used for higher efficiency and accurate infinitely variable blade speed with easy to read LED speed indicator. -P owered Chip Brush is driven by an independent electric motor for optimum blade cleaning, prolonging blade life & blade guides. - Hydraulically powered guide arm is positioned from the operator’s counsel permitting more efficient cutting by being moved closer to the material.
