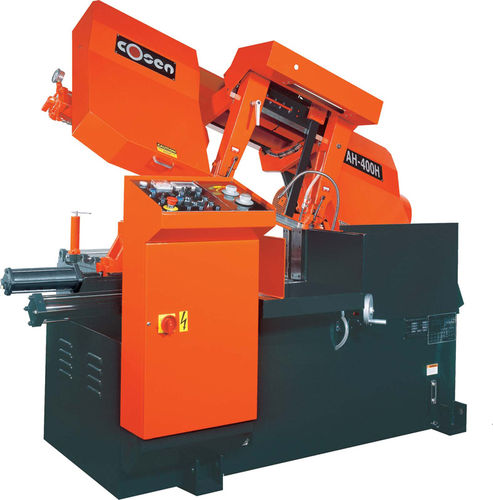

Band saw AH-400H

horizontalautomatic

Structure • Oversized hydraulic cylinder • Back-tilted saw frame for longer blade life • Hydraulic shuttle vise assembly Blade Drive • Specially designed gearbox for high lateral pressure • Infinitely variable blade speed Blade Guidance & Lubrication System • Carbide blade guides with roller bearing guides • Two additional guides to support the blade • Rigid guide arm mounted on extra wide dovetail • Automatic hydraulic blade tensioning device • Integral coolant system • Synchronized power driven blade brush Control & Automation • Front mounted digital length counter • LED digital blade speed monitor • Precision feed pressure & feed rate dual valve system • PLC control • Bundle/single cutting mode switch • Automatic work height selector & air gap eliminator • Preset piece counter with automatic power off Material Feeding & Clamping • Split vise jaws featuring automatic feeding down to remnant length of 3.15" (80mm) • Double retracting vise jaws • Full stroke hydraulic front vise • Ductile cast iron vises with replaceable hardened wear plates • PLC controlled multiple indexing • One set of vertical alignment rollers • Multiple horizontal rollers to facilitate smooth material feeding • Discharge table with built-in coolant return
