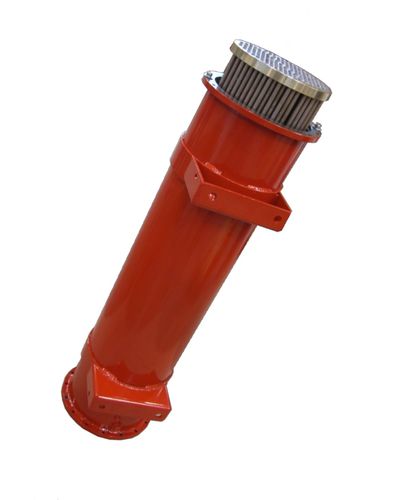

Shell and tube heat exchanger MS series

water/oil

The above series represent natural addition and logically complete series MS 84 and MS 134 by possessing major dimensions and exchange surface that reaches 10 m2. These series of heat exchangers have removable tube bundle which makes them inspectable both from oil and water side. Thus, being inspectable from both sides, these heat exchangers are perfectly suitable for various applications with non filtrated liquids. The material of which tube bundle itself is executed can be copper for performance with fresh water, copper-nickel for marine water and stainless steel for applications with corrosive fluids and gas. They consist of small diameter smooth tubes; this allows the best compromise between high thermic yield and low pressure loss. For a good exchanger practices some oil rates are indicated in the tables. Going down to the lowest rate of flow indicated in the tables, the low oil speed causes a great loss in yield, whereas a rate of flow which is superior to the maximum indicated causes great pressure loss and does not considerably increase the thermal yield. The performance diagrams indicate the heat quantity each exchanger can dissipate according to the difference between oil and water mean temperatures.
