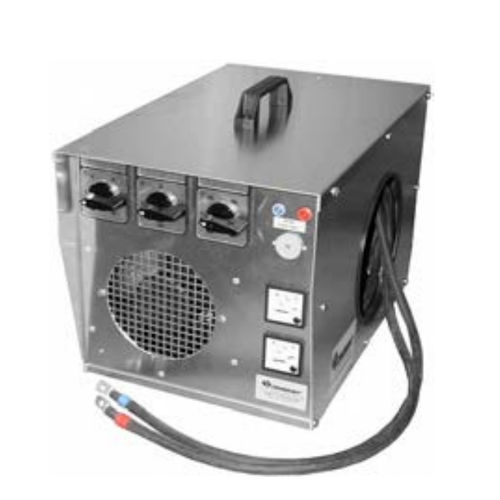

Battery discharge bank DVIM series

resistive

Load banks in the DVIM series: • have manual load step selection • are hand transportable (~ 13 kg, small size) • dissipate up to 6 kW • are forced-air cooled (built-in fan) • overall dimensions (W)313 x (D)508 x (H)356 mm • lightweight aluminum case - ingress protection IP20 • weight : approximately 13 kg depending on the model • one carrying handle • forced-air cooling (built-in fan) • maximum noise level approximately 54 dB(A) • ambient temperature - 30°C to + 40°C • resistive load constructed of Coudoint woven resistances in low temperature coefficient alloy • load step switches, rotary type • cooling fans and audible alarm powered by the test load itself • reverse-voltage detection (audible alarm) • cooling air-flow failure detection (audible alarm) • special marking (other language, .etc.) [I] • painted steel case [P] • analogue Voltmeter and analogue Ammeter [D] • 2 test sockets on front panel for current measurement by an external voltmeter (1mV for 1.5A) [A] • connecting cables (except for DVIM-48) [C] • only DVIM-48 : connecting cables fitted with 300 Amps spring-clips [S]
