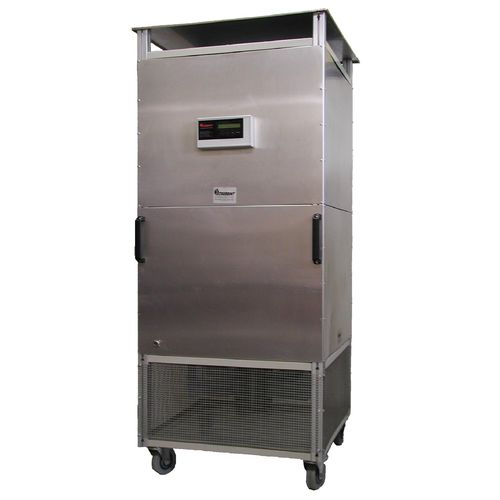

Battery discharge bank DCLA series

mobileresistive

Load banks of the DCLA series: • are electronically controlled • are portable • dissipate up to 150 kW • are forced-air cooled Standard models are : • DCLA-230 : 24 to 240 V / 250 A max. • DCLA-240 : 24 to 240 V / 450 A max. loads constructed with Coudoint resistors with low temperature coefficient resistance wire on ceramic insulators • electronic power switches • built-in digital controller • control panel with 4 push buttons and 24-digit display • simultaneous display of voltage, current, power and elapse time values • automatic load voltage detection • automatic load regulation to maintain current, voltage or power at the preset value, or to limit the discharge time. • several units can be used in parallel
