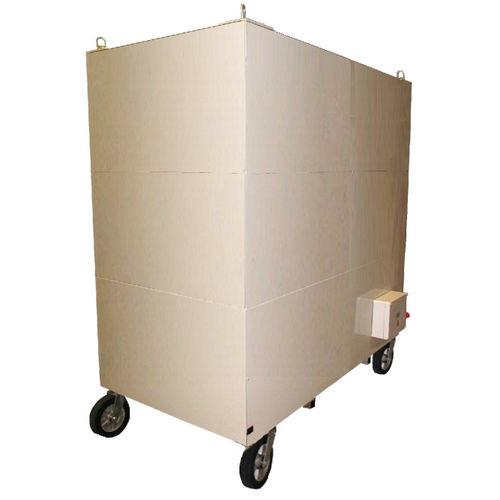

DC load bank ET1433

mobileconstant current

• main load with a capacity of sinking 800 Amps under 375 VCC (with 530 VCC peak voltages) by steps of less than 1 Amp • fixed secondary 4 kW load • forced-air cooling • main load electronically controlled – constant current or ohmic value – by a specific built-in controller • 3 load step selection modes : - local by control panel - by remote control panel - remote control by RS485 serial link • secondary load remote controlled via the electronic controller • voltage, current and power values displayed on the control panel and sent via the serial link • 2 braked omni-directional wheels & 2 fixed wheels, 4 top-mounted lifting eyes • dimensions: W1180 x D2107 x H2000 mm • ingress protection IP20
