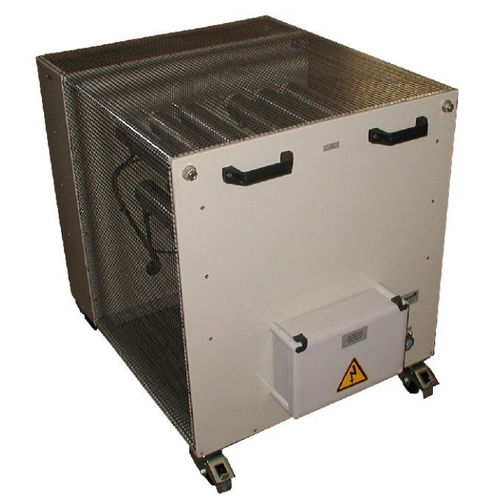

DC load bank ET1513

mobile

•9 load steps rated as follows: 1, 2, 4, 8, 16, 32, 64, 128, 256 Amps under the nominal operating voltage • nominal operating voltage 28 VCC • maximum current 511 Amps • natural air cooling • electronic power switches • load step selection by 9 parallel signals from an external controller • galvanic insulation provided between load circuit and control signals • power connections by copper bar terminals with bolts and nuts • 2 carrying handles, 2 fixed casters and 2 omni-directional braked casters • dimensions : L653 x P842 x H782 mm • weight 65 kg, ingress protection IP20
