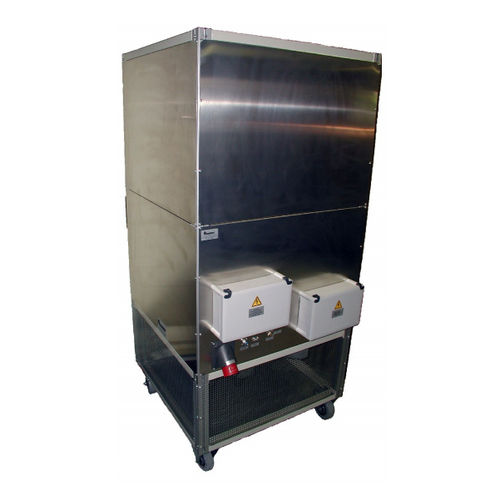

AC load bank ET1547

mobile3-phase

• 15 load steps, providing a resolution of 1 kW • remote step selection through a Profibus interface • forced-air cooling by a built-in blower • power connections by M16 terminal blocks • Profibus connection by 9-pin Sub-D connector • 2 x Ø4 mm sockets allowing load current measurement (through transformer) • external power supplies required for the Profibus interface (24 VCC) and for the cooling fans (380 V 50 Hz 3-phase) • portable with 2 fixed wheels and 2 omni-directional braked wheels • dimensions : W802 x D962 x H1756 mm • weight 256 kg , ingress protection IP 20
