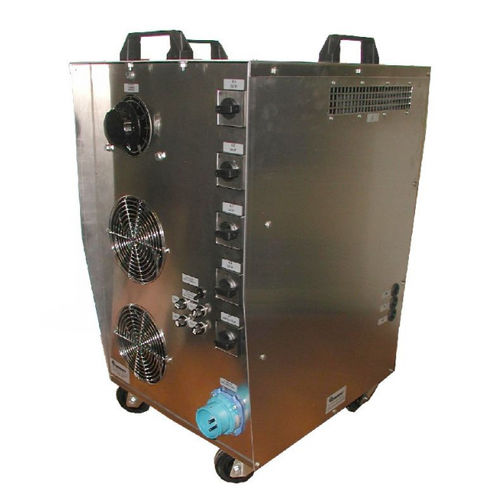

DC load bank ET1543

ACmobile

•4 fixed load steps (3 x 3 kW / 1 x 2 kW), selected by rotary switches on the front panel • 1 continuously adjustable load step from 100 W up to 1 kW by a rotary knob on the front panel • forced-air cooling : 2 fans powered from external 230 VAC 1-phase source or from the load itself • power and ground connections by M6 terminal blocks located behind an access door • hand transportable with 3 carrying handles, 2 fixed wheels and 2 omni-directional braked wheels • dimensions : W500 x D408 x H753 mm • weight 35 kg , protection degree IP 20
