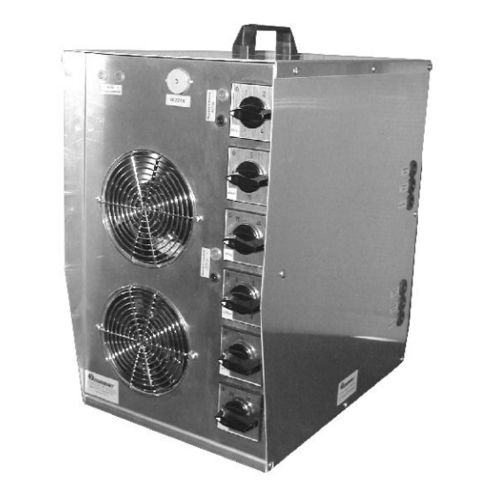

Battery discharge bank DVTM series

resistive

Load banks in the DVTM series: • have manual load step selection • are hand carried portables (~ 28 kg) • dissipate up to 12 kW • are forced-air cooled (built-in fans) • overall dimensions (W)317 x (D)495 x (H)543 mm • lightweight aluminum case - ingress protection IP20 • weight : approximately 28 kg • one carrying handle • 2 cooling fans • maximum noise level approximately 54 dB(A) • ambient temperature - 10°C to + 40°C • resistive load constructed of Coudoint woven resistances in low temperature coefficient alloy • 2 test sockets on the front panel for current measurement by an external voltmeter • cooling fans and audible alarm powered from an external source • reverse-voltage detection (audible alarm) • cooling air-flow failure detection (audible alarm)
