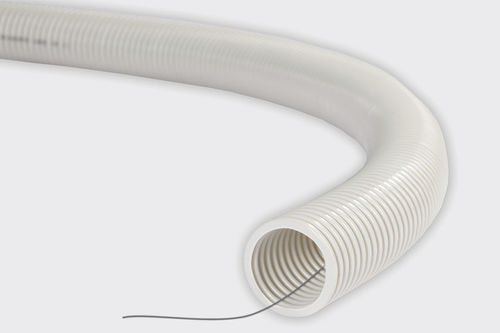

Protection conduit DOMO SPIRAL MEDIUM TYPE 750N

corrugatedspiralfor electrical cables

GENERAL DESCRIPTION • Corrugated (spiral), pliable, Suitable for medium mechanical loads • Made of polyvinyl chloride – (U-PVC) • Self extinguishing; flame retardant • UV protection APPLICATIONS • Outdoor residential and industrial installations • Encased in concrete • Infloor installations, Wall mounted installations (supports – collars) • Cable routing through masonry – Flush installations • Fits with: Rigid CΟΜΒΟ - DΟΜΟ - FΟRΤΕ, Connection Conduits, Junction - Switch- Plasterboard Boxes Available with special galvanized wire internally for quick and easy installation of cables upon order with an extra charge. APPLICATION STANDARDS: ΕΝ 61386-1/2004, EN 61386-22/2004 PROPERTIES Resistance to compression - (compression force) at 22 ±2 °C > 750 Ν / 5cm Resistance to Impact - (Weight mass / Fall Height) at -15 °C m:2kg / h:100mm Minimum temperature limit - 15° C Maximum temperature limit +60° C Dielectric strength 2 kv / 15 min Insulation resistance > 100 ΜΩ
