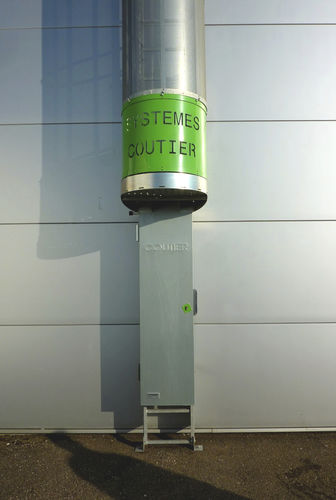

Galvanised steel ladder guard CEC100

for caged ladderssecuritywith safety cage

Access control door with hatchcover for any type of standard ladder with cage, fixed at the bottom of the ladder, preventing unauthorized and/or untrained people from climbing Locking by tailed lock Unlocking by pushing the release pedal on the hatchcover with the foot when descending the ladder Spring-loaded hinges GROUPS OF USERS Industry Engineering offices Architects, control offices Commercial and industrial buildings Pylons, road signalization gantries Silos, water tanks ... Travelling cranes, gantries PRODUCT DESIGNED FOR One way access (climbing and descending with the same ladder) Multiple access (ladders which are connected together, emergency exits...) REFERENCES CEC110A : hinges on the right hand side, self-closing CEC120A : hinges on the left hand side, self-closing ACCESSORIES (protections type C and D according to NF E 85-012 standard) Anti-intrusion rear bottom sheet for the ladder Anti-intrusion side panels for the ladder Perforated metal sheet around the cage of the laddder ASSEMBLY On a standard ladder (400 mm width between the uprights). For other dimensions, please fill in the dimension data sheet. By welding on a steel ladder > with kit range M900 By bolting on steel ladder > with kit range M500 (optional) By fixing kit on an aliminum ladder > with kit range M200 (optional) By adapter kit on a non-standard steel or aluminum ladder > with kit range M300 (optional) Estimated assembly time : 1 hour for 2 persons Warranty : 12 months
