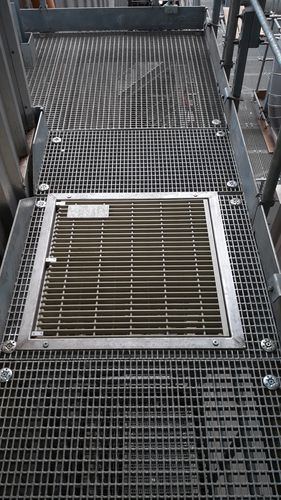

Floor hatch C2V

Pivoting trapdoor with self-closing device securing openings on gateways which are fitted with fixed ladders Hatch made of polyester grating Self-closing with integrated hydraulic speed regulator GROUPS OF USERS Industry Enginerring offices Architects, control offices Commercial and industrial buildings Silos, water tanks ... Travelling cranes, gantries PRODUCT DESIGNED FOR One way access (climbing and descending with the same ladder) Multiple access (ladders which are connected together, emergency exit ...) REFERENCES C2V100 : hatch made of polyester grating C2V200 : hatch made of aluminum checkered sheet C2V300 : hatch made of stainless raised-pattern steeelplate (304L) ASSEMBLY By welding on a steelplate or a grating floor By bolting (bolts non supplied) on a steelplate floor By clamps (not supplied) on a grating floor Estimated assembly time : 1 hour for 2 persons ADDITIONAL INFORMATION Equipment in compliance with following standards : - NF E 85-016 (December 2022) - EN ISO 14122-4 (March 2017) Trapdoor can be custom-made according to openings dimensions between 600 x 600 mm and 800 x 800 mm Delivery time : 2-3 weeks Warranty : 12 months TECHNICAL FEATURES Frame made of stainless steeel (304L) Pultruded polyester grating height 30 mm , mesh 19 x 56 mm ( supporting profile made of 30 x 6 mm flat and rush Ø 8 mm) - Weight 12 kg/m² Standard color : grey Temperature of use : -20° C and +50° C Opening angle : 100°
