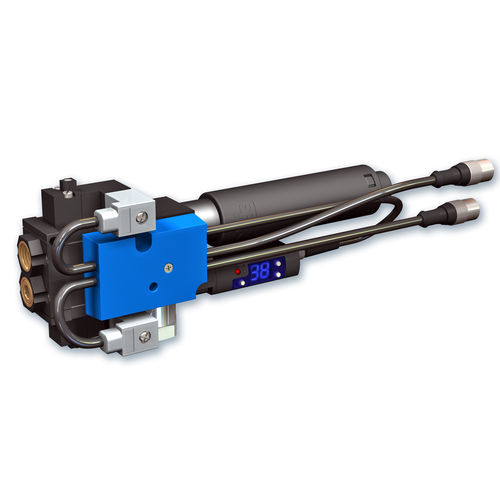

Venturi vacuum pump GVMAX V2-2 series

oil-freesingle-stagefor robots

. Nozzle Ø : 2.5 mm . Maximum vacuum : 90% . Suction power : up to 200 Nl/min . Vacuum regulation function . M12 connection With GVMAXV2-2 and GVMAXV2-2R, COVAL offers two solutions on a single standard electrical GVMAX base pump. These pumps offer an ‘all in one solution’ by integrating all the necessary functions, pilots, valves, vacuum regulation, blow-off, object presence thanks to vacuum switch and silencer in a compact and light weight single module. The M12 connecters radically simplify the installation and utilization. They are available in two versions and compatible with the safety of the automat: • GVMAXV2-2: Non-adjustable vacuum switch (factory settings) • GVMAXV2-2R : Adjustable vacuum switch Advantages In comparison to the standard GVMAX the two pumps GVMAXV2-2 et GVMAXV2-2R offer the following advantages: • Security: vacuum generation in case of electrical failure by in coming electro valve for feed pressure through normally open function (24VCC) • Controlled and powerful blow-off system. • Data processing circuit (connection cable) • Connection by 2 male 5 pin M12 connectors, (Input/ Output) • Compatible with the safety automat Specifications • Base body: Aluminum (AU 4 PB) • Valve body: POM (black polyacethal) • Silencer: Black PC with felt internal element • Vacuum switch: PA66, PC, brass, NBR seal • Electric wiring: PA66 • Screw: Zinc-plated steel • Inside parts: Brass; Aluminum; Desmopan • Seals: NBR (nitrile) • Membrane: NBR (nitrile) with nylon substrate.
