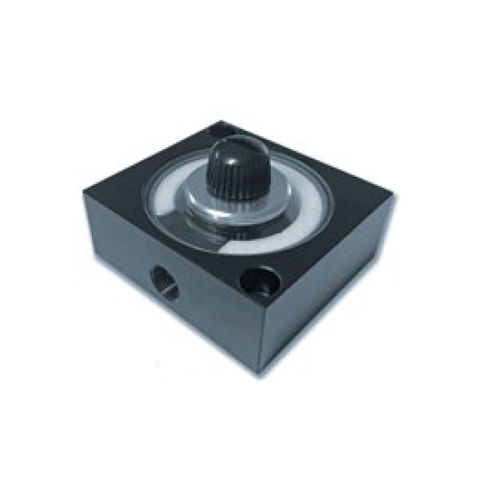

Air filter FVG series
cartridgevacuumfine filtration

Air filter - FVG series - COVAL - cartridge / vacuum / fine filtration
Air filter - FVG series - COVAL - cartridge / vacuum / fine filtration
Add to favorites
Compare this product

Go to the COVAL website for more information

Characteristics

Designed for
air
Filtration element
cartridge
Filtration method
vacuum
Applications
fine filtration
Material
polypropylene
Norms
G3, G1
Other characteristics
compact, in-line, mini-pleat, small
Operating pressure

Max.: 5 bar
(72.519 psi)

Min.: -1 bar
(-14.504 psi)

Filtration size

40 µm

Flow

Max.: 125 l/min
(33.022 us gal/min)

Min.: 21 l/min
(5.548 us gal/min)

Fluid temperature

Max.: 60 °C
(140 °F)

Min.: 0 °C
(32 °F)

Description

FVG series vacuum filters are especially recommended for fine filtration. Their light weight allows easy on-board installation. Fitting: FVG 3: G1/8"-F (Female) FVG 5: G1/4"-F (Female) FVG 6: G3/8"-F (Female) Specifications Operating pressure : -1 to 5 bar Temperature : 0 to 60 °C Filtration (μ) : FVG 3-5-6 : 40 Weight (g) : FVG 3: 70 g FVG 5: 138.5 g FVG 6: 220 g Material : Body : POM Hood : Polycarbonate Seal : Nitrile (NBR) Screws / large washers : Polyethylene and plated steel Filter : Porex Accessories Replacement cartridges : interchangeable filtration element. Add E to the filter model reference to order the replacement cartridge.
