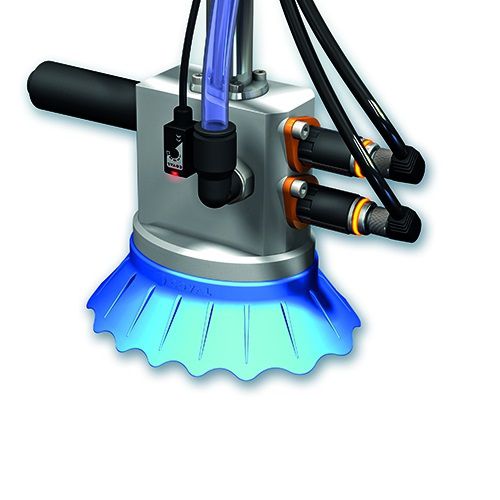

Lubricated Venturi ejector CVP Series

24 Vdcsingle-stagefor machines

Owing to their compact size and light weight, the CVP Series vacuum cartridges can be used to easily install a simple and reliable vacuum generation system as close to the application as possible. They meet the flexibility, customization and performance needs of machine manufacturers and integrators of robotic solutions, who wish to easily design flexible, modular and efficient gripping tools. CVP Series vacuum cartridges are suitable for a broad variety of applications and are available in different sizes and suction capacities: . Size 1: nozzle dia. 1.2, 1.4 and 1.6 mm generating a suction flow rate ranging from 41 to 90 Nl/min. Max. vacuum 85%. . Size 2: nozzle dia. 2.2 and 2.7 mm generating a suction flow rate ranging from 160 to 215 Nl/min. Max. vacuum 85%. Advantages . Ultra-light and compact cartridge design allows for great flexibility and easy integration. . Vacuum technology: powerful single-stage Venturi that is dust resistant and maintenance-free. Compact Integration The CVP Series vacuum cartridges include a single-stage Venturi that uses compressed air to generate a powerful vacuum, thus guaranteeing short evacuation times. The single-stage technology, consisting of a nozzle and a mixer, works without any moving parts, is dust resistant and maintenance-free.
