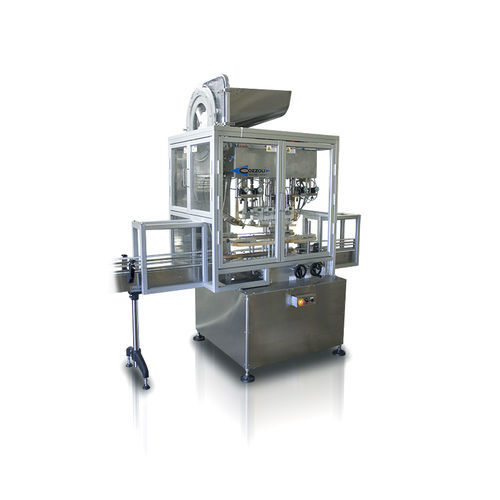

Linear screw capping machine Versa Cap

fully-automaticmulti-containerfor the food industry

The Versa Cap is a straight-through friction disc capper designed to handle a variety of cap sizes, ranging from 13mm to 110mm, with little or no changeover time required. It is easy to run, easy to adjust and uses a minimum of components to provide consistently high quality and trouble-free capping. This high-performance straight through capper is designed to handle a wide range of cap shapes and sizes. It is easy to run, easy to adjust and uses a minimum of components to provide versatile, high quality capping. The Versa Cap is designed for rapid change over by using a minimum of cap size change parts. One sorter, chute , and adjustable chute end can handle most caps in either the 13-38mm or 38-70mm size range. A simple quick-change adjustable chute end that snaps into position without tools is needed for each major cap size variation. Cushioned gripper belts are adjustable to move containers of nearly any size and shape smoothly through the capping operation without the need for timing stars or feed screws. Caps are positioned from a chute in the cap escapement assembly, picked up by the container neck finish and positioned for tightening. An independently driven overhead assembly with matching sets of polyurethane discs assures tight capping. The first set of discs gives caps a quick initial twist. The next set of discs draws the cap onto the container neck. The cap sorter, tightening discs, and machine/conveyor are controlled through three electronically controlled variable speed drives. • Fully automatic operation • Rotary vertical cap sorter and feeder with pinsorting wheel • Stainless steel cap chute • Custom designed cap chute spacers
