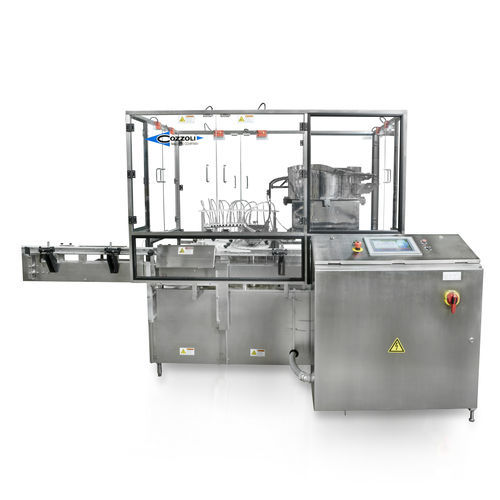

Automatic filling and stoppering machine CR series

for pharmaceutical productscontinuous-motion

The CR Series provides continuous-motion filling and stoppering. Offering production speeds up to 200 and 400 containers per minute, this machine performs with outstanding fill accuracy of +/- .5% or better, with either full or partial insertion of stoppers. FEATURES Compact sized, efficient with production and cost saving. It offers quick and easy changeover, one vibratory bowl that handles stopper sizes of 13 and 20mm or 20 and 28mm. When used with laminar flow, the CR series open flow-through design of the central star-wheel significantly lowers particle counts to well under GMP standards for use in Class 100 cleanrooms. This PLC controlled machine features a stainless steel exterior with all liquid contact parts fabricated of 316L stainless steel and medical grade tubing to accommodate sterile requirements. It also provides missing container, make-up and back-up detection systems. OPERATING PRINCIPLE Containers enter the machine via the infeed conveyor, where they are transported single file into a Delrin timing screw where they are precisely spaced into star wheel pockets. Containers are then transferred into a larger main starwheel where the filling operation occurs. After filling, containers travel to the exit starwheel for stopper positioning and insertion. The continuous motion handling of the containers reduces machine wear, and provides for gentle handling of the containers. Syringe Assemblies Nozzle Assemblies Tygon Tubing 1 Set of Vial Change Parts Vibratory Bowl Stopper Feed Assembly Stopper Delivery Assembly Valve Assemblies Down Vial Eliminator
