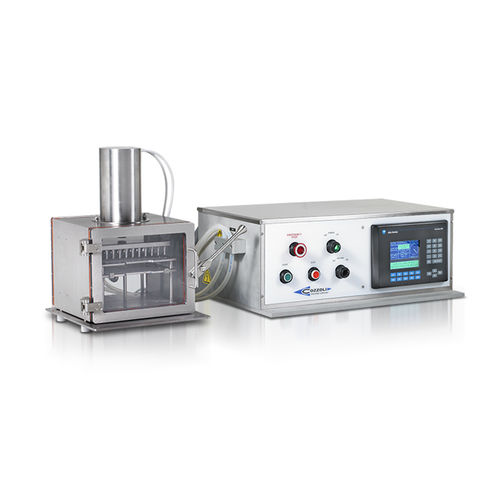

Vacuum capping machine MVP

semi-automaticmulti-containerfor the pharmaceutical industry

The MVP vacuum stoppering system provides reliable, semi-automatic, batch insertion of stoppers, plungers or plugs into filled containers. This high-performance machine is the perfect companion to the F329 Series liquid filling machines. A pneumatic stopper transfer mechanism is operated by the cycle control unit. This cycle control unit governs all functions of the assembly operation according to operator selected parameters. Unlike other systems, the vacuum chamber and all container handling parts are completely autoclavable, designed to withstand temperatures of 450° F (232° C). The entire 316L stainless steel chamber can be steam sterilized for maximum cleanliness. The operator places the filled syringes into a rigid stainless steel barrel rack, tops it with a transfer plate loaded with pre-packaged or individual stoppers, then places the assembly into the MVP’s, vacuum chamber. The MVP’s control unit then regulates the user’s vacuum, nitrogen and compresses air utilities which are programmed to remove entrapped air from the product, purge the chamber and transfer the stoppers into the syringes. Final venting to ambient air pressure forces the stoppers into contact with the liquid for a secure, reliable seal. Vacuum Only and Vacuum/Purge/Vacuum Switches: By setting selector switches on the front panel, the operator can choose to run the system using vacuum only, or with a vacuum/nitrogen purge/vacuum sequence. Vacuum Level Settings: Internal adjustments allow the user to preset the necessary level of vacuum. The rest of the stoppering cycle will not activate until this level is attained.
