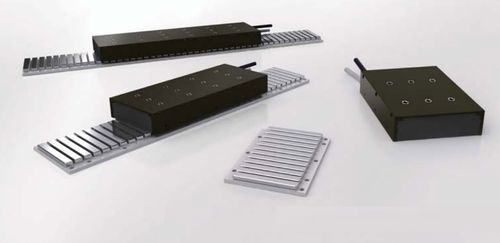

Iron-core linear motor LM-CA series

high-performance

When the motor is operating in its linear sphere. its thrust output is directly proportional to the input current while measuring at a constant value. When operating in the saturation sphere. thrust output is not directly proportional to the input current due to magnetic saturation, resulting in a lower thrust output increase. Ironcore Linear Motor Construction & Features Iron core linear motors are suitable for use in point to point, high accélération, velocity and load linear motion applications. ■ cpc For motor parometers. force constant refers to ths amount of force produced per one ampere of curent, while motor constant refers to the force produced per Watt and ts representath/e of the motor's efficiency. As such, the motor constant is a better metric at evaluatirvg motor performance, cpc's linear motors have been designed with the aid of advanced simulation software. As a resuit, for this metric. cpc motors have a higher motor constant. ■ low Cogglng Force Cogging force originales from the drastic altérations in magnetism on the iron core during transitions across the différent magnetic pôles on the stator. In this way. by skewing the magnets. the magnetic changes can be lowered. By using advanced software anciysis to do so. cpc has arrived at a design with an exceptionady low cogging force.
