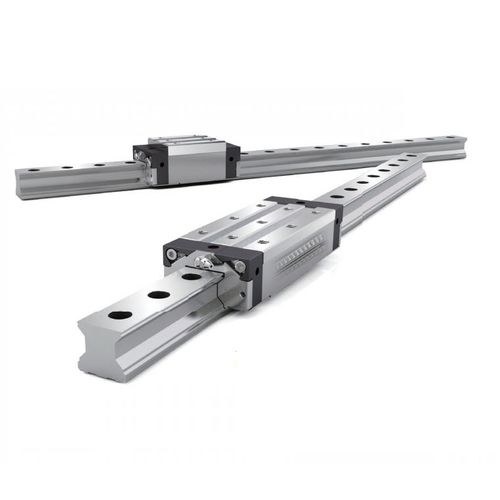

Linear guide with ball bearing ARD/HRD/ERD
compact

Linear guide with ball bearing - ARD/HRD/ERD  - CPC - compact
Linear guide with ball bearing - ARD/HRD/ERD  - CPC - compact
Linear guide with ball bearing - ARD/HRD/ERD  - CPC - compact - image - 2
Linear guide with ball bearing - ARD/HRD/ERD  - CPC - compact - image - 3
Linear guide with ball bearing - ARD/HRD/ERD  - CPC - compact - image - 4
Add to favorites
Compare this product


Characteristics

Technology
with ball bearing
Other characteristics
compact
Rail width

Max.: 53 mm
(2.09 in)

Min.: 15 mm
(0.59 in)

Load

Max.: 209 N

Min.: 15.6 N

Description

ARD/HRD/ERD series Standard 4-Row Ball Bearing Linear Guide Equipped with Cover Strip Product features - Equipped with cover strip - High dustproof effectiveness - Easy installation - Available in all sizes: 15-55 - Length of the cover strip will be the same as the guide rail - Fixed device provided on both ends LRR Extremely Low Profile Type Suitable for conditions where a lower external torque and inertial force is required, this product combines a low height and center of gravity to provide a more compact product. ARR, HRR and LRRs blocks all share the same rail with a similar load capacity and service life. MXL Ultra Long Block Type Compared to the industry's ML lengthened block, the MXL model's much lengthened block features a greater load, rigidity and shock reduction capability. This makes this model most suitable for machine tools that require super high rigidity and accuracy. High Rigidity Stainless Steel Reinforcement Plate (Standard Feature) Our L-shaped design is locked with end and bottom screws on the block body. The bottom of the body is equipped with on integrated boit, which allows for the tight fixing of the reinforcement plate to prevent unnecessary block damage from cracking the plastic mountings. (For more information please refer to page 06) Metal-Plastic-Cap (Standard Feature)
