Ball bearing guideway MR Series
steelminiatureprecision

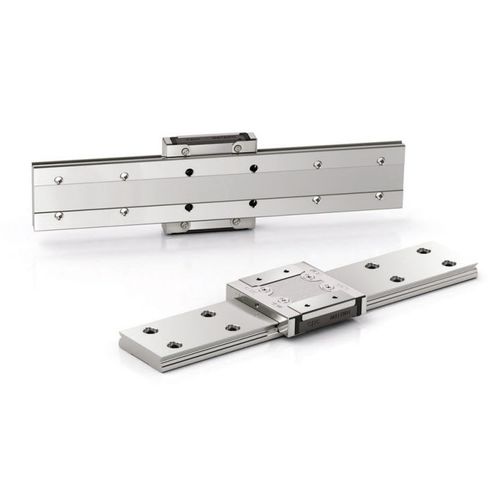

Ball bearing guideway - MR Series - CPC - steel / miniature / precision
Ball bearing guideway - MR Series - CPC - steel / miniature / precision
Ball bearing guideway - MR Series - CPC - steel / miniature / precision - image - 2
Add to favorites
Compare this product


Characteristics

Technology
ball bearing
Other characteristics
steel, miniature, precision
Rail width

Min.: 18 mm
(0.71 in)

Max.: 42 mm
(1.65 in)

Load

Min.: 910 N

Max.: 4,050 N

Description

High load, high moment function - Steel plate reinforcement design dot Unique ball re-circulation design - Dust proof design dot Embedded inverse hook design - Lubrication storage design dot Precision MR Miniature Linear Guide series have three accuracy options: Precision(P)、High(H)、Normal(N). dot Material for miniature linear guide is all made by heated treated stainless steel, including the rail, steel body of block and balls. Brand new U series - - - Features: the built-in bottom seal does not affect the friction resistance if a clearance is smaller than 0.1mm. SU series - end, bottom seals - - In addition to a normally equipped end seal, a newly designed runner block is equipped with a extra bottom seal, which can prevent foreign objects entering via the lower side of the runner block into the ball running rail, extending the working life of the runner block. - * the new design is recommended for purchase in priority ZU series - end, bottom seals and lubrication pad - A newly designed bottom seal can prevent lubrication grease from spilling below the runner block. In addition, a built-in lubrication pad is mounted, further strengthening the effects of saving grease, and extending a re-greasing interval. - * the new design is recommended for purchase in priority.
