Slide guideway ST Series
steelminiature

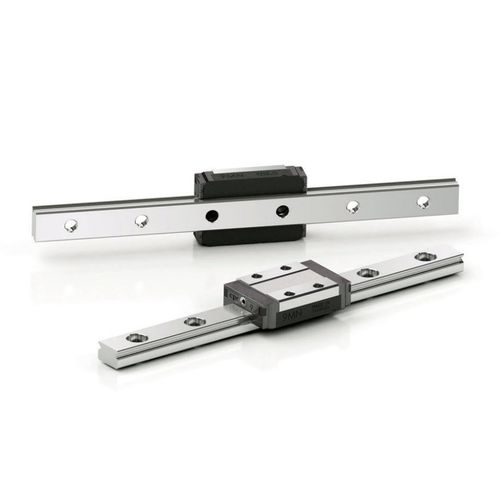

Slide guideway - ST Series - CPC - steel / miniature
Slide guideway - ST Series - CPC - steel / miniature
Slide guideway - ST Series - CPC - steel / miniature - image - 2
Slide guideway - ST Series - CPC - steel / miniature - image - 3
Slide guideway - ST Series - CPC - steel / miniature - image - 4
Slide guideway - ST Series - CPC - steel / miniature - image - 5
Add to favorites
Compare this product


Characteristics

Technology
slide
Other characteristics
steel, miniature
Rail width

Max.: 42 mm
(1.65 in)

Min.: 18 mm
(0.71 in)

Load

Max.: 12,580 N

Min.: 6,725 N

Description

High load and high moment capaity The ST Miniature Stroke Slide Series is designed with two rows of balls. The ball track has a gothic profile design with a 45 degree contact angle to achieve equal load capacity in a mono block. This provides more space for the larger rolling elements while enhancing the load and moment capacity. dot High running accuracy and smoothness The steel balls of the ST miniature stroke slide series roll on the rail without recirculation, resulting in excellent running behavior, smoothness, low friction, and high accuracy without vibration. dot Dual plate design The ST Miniature Stroke Slide Series adopts a pair of end plates into the design. Both the center rail and bearing block sides have a plate installed that prevents the linear guide from over-stroking. dot Easy mounting The mounting of the ST Miniature Stroke Slide Series is accomplished by fitting the fixing screw downward into the count bore of the rail by intersecting the hole pattern on the block and cage within the hole pitch. The one piece cage therefore does not influence the mounting of the rail while the preload is preset by ball sorting. dot Temperature The ST Miniature Stroke Slide Series can withstand temperatures of up to 150 °C. There are two treatment options for higher temperature applications: T1: 200°C T2: 300°C Applying treatments for higher temperature applications will reduce the load capacity.
