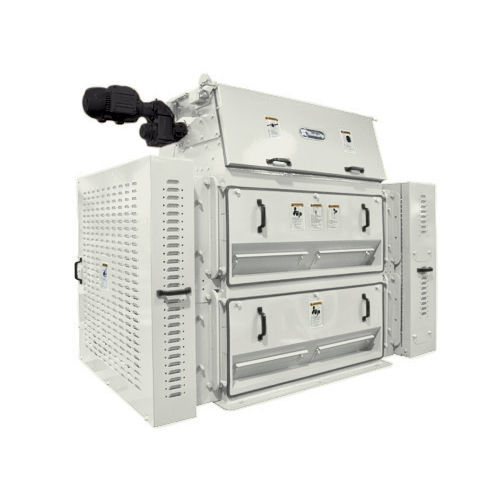

Circulation grinding mill 1200 Series

horizontalsoybeanrobust

Designed for the most demanding oilseed applications, the robust construction of the Roskamp Cracking Mills guarantees maximum performance around the clock. Load-centering bearing supports and unique bearing slides assure accurate, consistent production. Roll corrugation and speed differential ratios are available to match any operating system. The 1200 Series Cracking Mill has a roll surface area ranging from 904 to 2,714 square inches, a soybean capacity range of 300 to 1,000 MTD and a horsepower range of 15 to 125 HP. 12" diameter chilled iron rolls Load-centering bearing supports Replaceable bearing slides Roll corrugation and speed differential ratios for all applications Straight-line roll adjusting maintains tram throughout full range of adjustment Separate inner-roll drive for each bank of rolls One motor V-belt drive Chilled cast iron rolls Alloy steel shafts Self-aligning, double-row spherical roll bearings with split pillow block housing One-point roll adjustment via machine screw jacks maintains roll parallel throughout full range of adjustment Separate industrial-duty adjustable motor platform available in left- or right-side drive and choice of "C" flow or "Z" flow configuration UHMW cheek plates to seal the roll ends Fast roll equipped with axial fan to provide air circulation over drive components
