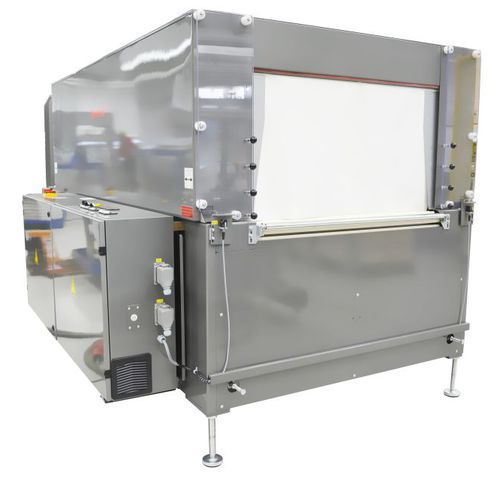

Electric shrink tunnel Universal 650 HV
for heat-shrink sleevescompactwith infrared heater

Electric shrink tunnel - Universal 650 HV - CPS&S Inc. / Kallfass USA - for heat-shrink sleeves / compact / with infrared heater
Electric shrink tunnel - Universal 650 HV - CPS&S Inc. / Kallfass USA - for heat-shrink sleeves / compact / with infrared heater
Add to favorites
Compare this product


Characteristics

Type
electric
Specifications
for heat-shrink sleeves, compact, with infrared heater
Speed

Max.: 1.9 ft/s
(0.6 m/s)

Min.: 0.5 ft/s
(0.2 m/s)

Power

30 kVA, 36 kVA
(41 hp, 49 hp)

Description

Delivering Strong Shrink Results in Polyethylene Applications The Universal N and HV shrink tunnels are perfect for All Polyethylene applications. These models are ideal for fully-automatic sleeve wrappers such as the Kallfass SW 500, SW 650/950 IL as well as the SW 500/800 Servo. The Universal tunnels have high capacity heating systems which provide outstanding shrink results. Adjustable registers on both sides and bottom allow for fine-tuning of the airflow for all sizes of products. Variable speed blower and speed controls are also standard. The Universal HV tunnels offer an additional complete fusion seal when used with sleeve wrappers. This patented technology allows for completely enclosed packages to be produced inside the shrink tunnel. Compressed air is used to overlap the 2 film layers on both sides. Heated air from the bottom and sides heats and shrink films. This technology offers up to 15% film savings over other competitors using side seal stations or tuck and fold units to close the sides of the product. Dual layer tunnel chambers offer extremely high insulation and energy savings over single layer tunnel chambers.
