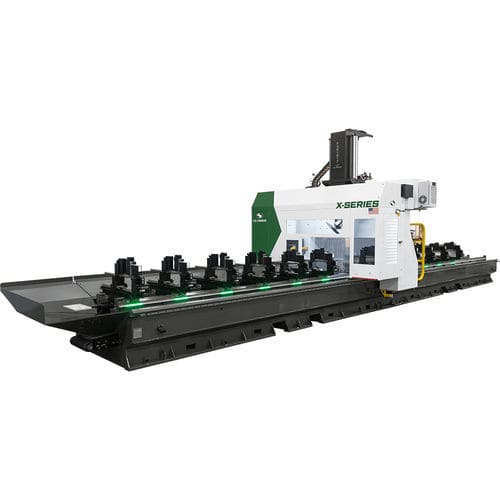

5-axis CNC machining center X-Series

verticalgantrydouble-column

The C.R. Onsrud X-Series is an industrial-grade CNC profile machining center built for high-speed, six-sided milling, drilling, tapping, and sawing of aluminum, PVC, fiberglass reinforced plastic, alloy bars, extrusions, and pultrusions. From its heavy-duty steel base to its 400mm saw blade capacity, this machine has been engineered and manufactured to provide customers with an extrusion processing platform that is powerful, reliable, and easy to operate. The X-Series comes standard with C.R. Onsrud’s Extrusion-Grip clamping system, which consists of multiple auto-clamping vices that can be relocated along the length of the machine. This unique fixturing system provides maximum hold with minimal clamping footprint to optimize spindle clearance and allow chips, debris, and cut-offs to drop below the machining area and away from the spindle. The X-Series comes standard with an F.E.A. engineered steel frame, integrated chip conveyor system, FANUC 5-axis control system, and a dual-column, fully enclosed moving gantry for rigid machining, chip containment, and operator safety. If you're looking for a reliable, high-speed extrusion processing machine that can accommodate high-mix or high-production jobs, this is the machine for you. Spindle: Standard - 17HP 24,000 rpm Optional - 24HP Control: Standard - FANUC 30i Tool Management: Standard - 12 Pos. Rotary Scrap Handling: Standard - Chip Pan Optional - Conveyor Material Handling: Manual Positioned Clamps Optional Items: Gantry Positioned Clamps Aggregate Capable 400mm Saw Blade Auto Tool Measurement Scale Feedback Robot Automation
