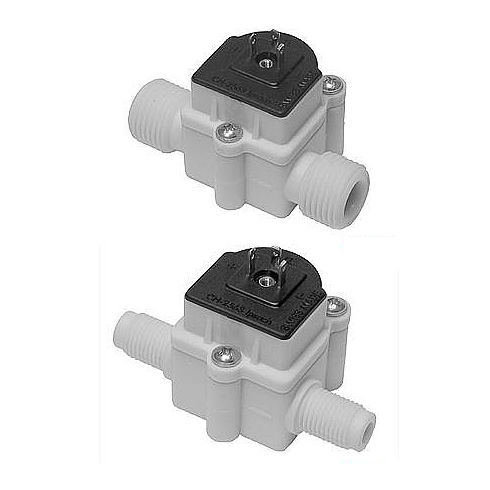

Turbine flow meter FHKU volumefor chemicalsfor low flow rates
Add to favorites
Compare this product
Characteristics
- Technology
- turbine
- Type
- volume
- Fluid
- for chemicals
- Applications
- for low flow rates
- Volumetric flow rate
Min.: 0 l/min
(0 us gal/min)Max.: 30 l/min
(7.9252 us gal/min)- Process temperature
Min.: -10 °C
(14 °F)Max.: 100 °C
(212 °F)- Process pressure
Min.: 0 bar
(0 psi)Max.: 20 bar
(290.08 psi)
Description
These turbine Flow Meters series have been realised for the micro-dosage of the chemical produtcs thanks to the low flow which they can work to. Avaiable diameters from ¼'' to ½'' with flows from 0,041 to 30 liters/min. The working temperatures can be ranged from -10 and +100°C, with maximum working pressure of 20 bar.Equiped with Open collector NPN pulse emitter: from 130 to 4.366 pulse/liter. Built in PVDF.
