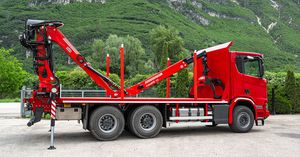

Truck-mounted crane TL12

telescopicarticulatedfor the recycling industry

The cranes have been specially produced for trucks and consist of modern, tried-and-tested technologies and world-class hydraulics. In our development work we have focused on the operator, contractors and the environment. We have put great emphasis into the industry-leading key qualities of performance, high productivity and sustainability. Cranab's L-formed truck crane always puts you one step ahead: It is powerful, versatile and flexible, service-friendly and safe. The L-crane always comes fitted with a torque linkage, which makes it extra powerful and dependable, especially in heavy lifting scenarios. Available version: Telescopic version - 1 Standard reach - 8,3 m Lifting capacity - 115,00 kNm Hydraulic extension - 1,57 m Angle rotation - 425° Rotation torque - 29,3 kNm Working pressure - 26 Mpa Pump capacity - 120 - 160 l/min Crane weight - 2415 kg Telescopic version - 2 Standard reach - 10,0 m Lifting capacity - 106,4 kNm Hydraulic extension - 3,1 m Angle rotation - 425° Rotation torque - 29,3 kNm Working pressure - 26 Mpa Pump capacity - 120 - 160 l/min Crane weight - 2535 kg
