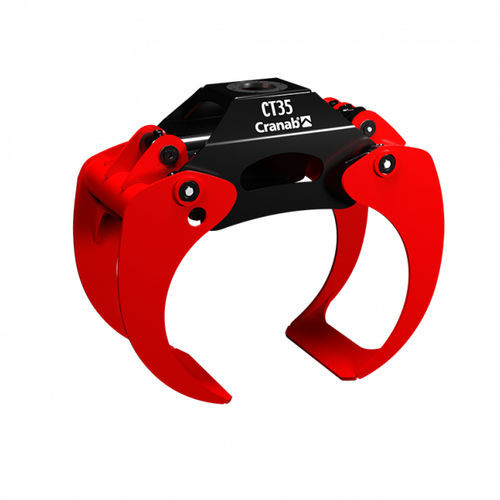

Log grapple CT series

The Cranab CT grapple is purpose built for truck cranes. The series consists of three sizes with the model designations, CT35, CT40 and CT50, and complements the entire Cranab grapple programme. Available model: CT35 Max. working pressure - 25 Bar Weight - 232 Kg DIMENSIONS - Area - tip to tip - 0,32 m² Max. gripping width - 1818 mm Min. gripping diameter - 126 mm Grapple width - 487 mm Height - max. gripping width - 804 mm Height - tip to tip - 977 mm POWER AT TIP - Max. gripping width - 1613 Kp Min. gripping width - 1835 Kp Max. load - 4000 Kg Expander pins - Yes CT40 Max. working pressure - 25 Bar Weight - 250 Kg DIMENSIONS - Area - tip to tip - 0,40 m² Max. gripping width - 1978 mm Min. gripping diameter - 129 mm Grapple width - 487 mm Height - max. gripping width - 886 mm Height - tip to tip - 1065 mm POWER AT TIP - Max. gripping width - 1613 Kp Min. gripping width - 1835 Kp Max. load - 5000 Kg Expander pins - Yes CT50 Max. working pressure - 25 Bar Weight - 264 Kg DIMENSIONS - Area - tip to tip - 0,50 m² Max. gripping width - 2079 mm Min. gripping diameter - 167 mm Grapple width - 487 mm Height - max. gripping width - 958 mm Height - tip to tip - 1123 mm POWER AT TIP - Max. gripping width - 1529 Kp Min. gripping width - 1733 Kp Max. load - 5000 Kg Expander pins - Yes
